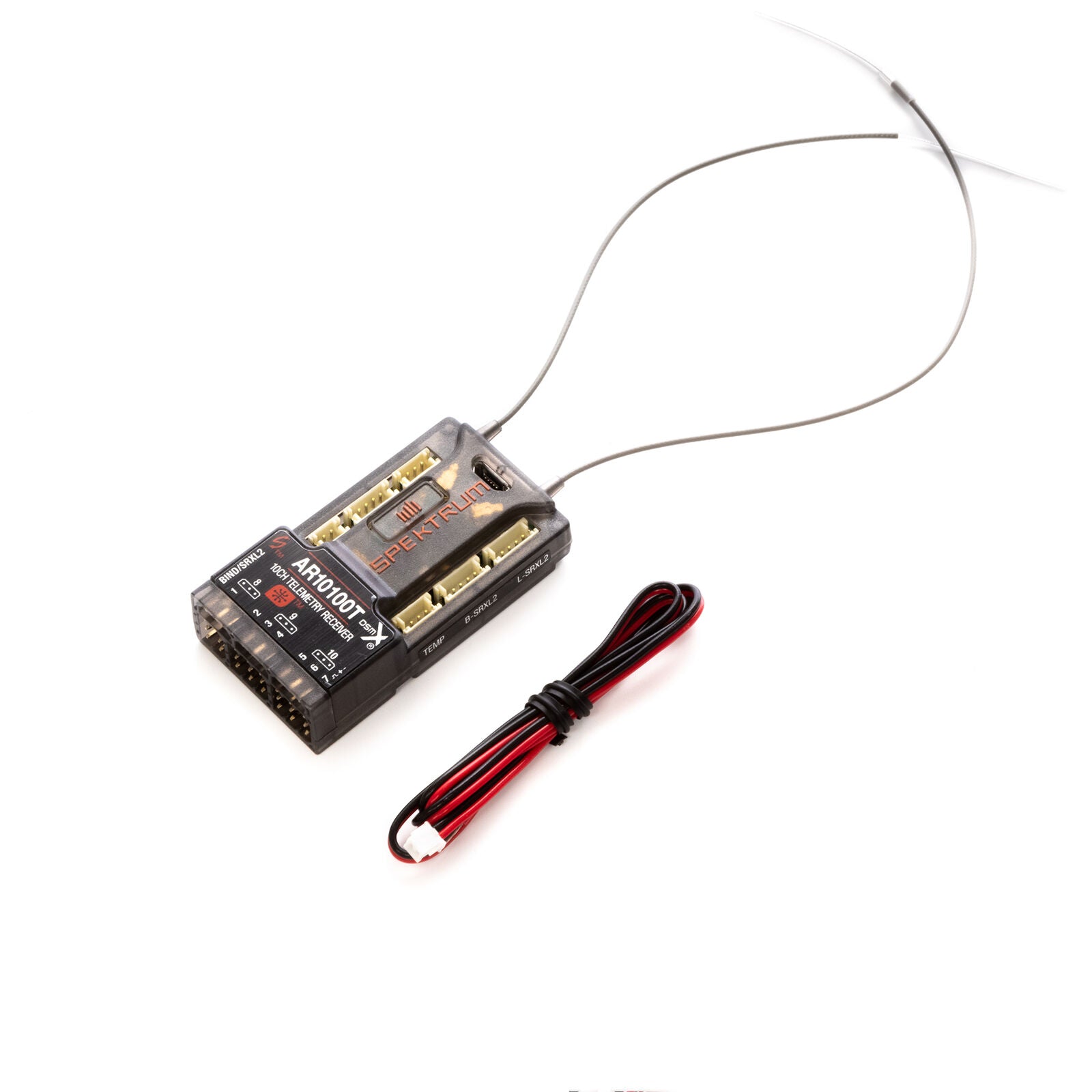

AR10100T- Spektrum DSMX™ 10-kanals telemetri-modtager, 2,4GHz.

Product Specifications

Antenna Length                          186 mm

Band                  2.4GHz

Bind Method    Bind Button

Channels           10

Data Port          Yes

Dimensions      55 x 30 x 15mm

Failsafe             Yes

Input Voltage   3.5V–9V

Modulation      DSMX/DSM2

Product Weight                          18g

Programmable Yes

Range                Full

Telemetry         Yes

Water-Resistant                         No

Product Details

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft.

Key Features

Compact footprint to fit in a wide range of aircraft

Full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase

Features a bind button for easy binding with no plugs necessary

Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application

 In The Box

(1) AR10100T DSMX 10-Channel Telemetry Receiver

(1) Spektrum Flight Pack Voltage Sensor

(1) Product Manual

 Needed to Complete

(1) Telemetry Capable DSMX Transmitter

Servo extension(s) may be required

Features

Compatible with all Spektrum DSM2 and DSMX transmitters

Compact footprint fits most parkflyer size, sport class and giant scale models

Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors

VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors

XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more

Micro USB port for easy registration and firmware updating capability

Bind button allows for easy binding and eliminates the use of bind plug

Two external antennas will ensure secure RF coverage from all angles of the aircraft

Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately

Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

End pin output pins for easy and compact installation

Forward Programming capable for setting individual failsafe parameters per channel and more

Overview

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application. The AR10360T It also features 2 SRXL2 ports for added SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect smart devices, bind with a traditional bind plug, or connect a battery. The AR10100T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe'" technology and Hold Last as well as preset failsafe types set through forward programming. Also, the throttle port is Smart ESC compatible right out of the box.

SMART TELEMETRY

To enjoy the full benefits of Smart™ technology, use the AR10100T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time.

INTEGRATED BAROMETER

The Spektrum™ AR10100T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data to your telemetry capable Spektrum Transmitter, without the need to purchase additional sensor modules.
