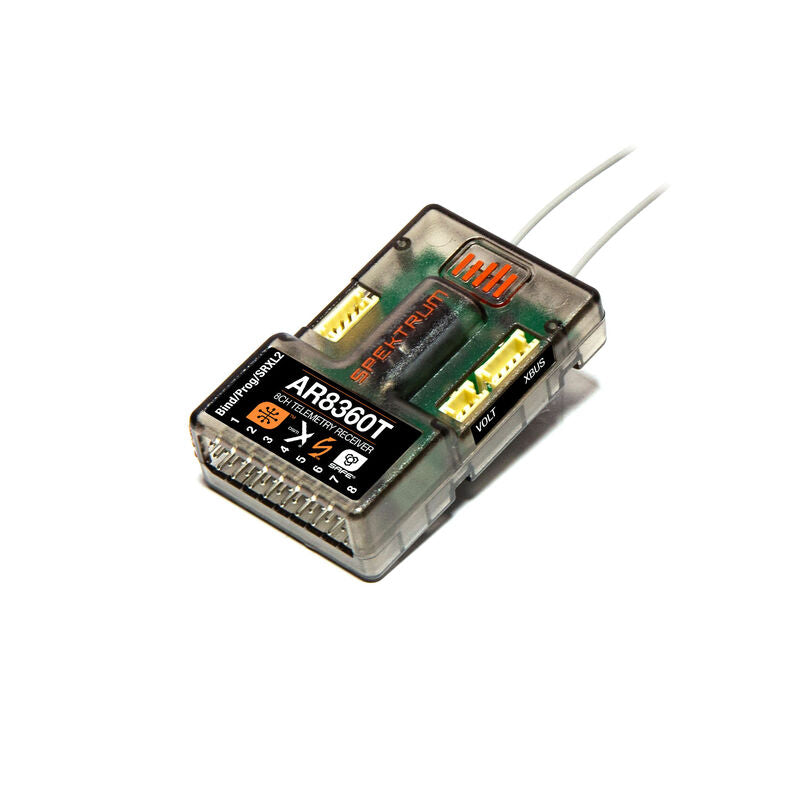

AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
Afhentning er tilgængelig her: Modelhobby Shop / Blokken 17, 3460 Birkerød
Normalt klar inden for 2 timer
Product Details
The Spektrum™ AR8360T+ 8-Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T+ is a full-range 8-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, increased sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
Key Features- Compatible with all Spektrum™ DSM2 and DSMX transmitters
- Built in AS3X+ Stabilization System with SAFE flight envelope protection
- Smart Transmitter Model File Download Support
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude, and vario telemetry data without the need of additional sensors
The AR8360T+ features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through forward programming.
Please Note:
The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.
These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.
Using this receiver in turbine powered aircraft models is not recommended.
- Bind button allows for easy binding and eliminates the use of bind plug
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
- End pin output pins for easy and compact installation
- AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter*
- Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires
- Forward Programming capable for setting individual failsafe parameters per channel and more
| Antenna Length | 6.1" (155 mm) |
| Application | Airplane, Sailplane |
| Band | 2.4GHz |
| Bind Method | Bind Button |
| Channels | 8 |
| Failsafe | Yes |
| Forward Programming | Yes |
| Input Voltage | 3.5 - 9V |
| Integrated Variometer | Yes |
| Modulation | DSMX |
| Product Application | Air, Sailplanes |
| Product Height | 0.59" (15 mm) |
| Product Length | 1.92" (49 mm) |
| Product Weight | 0.56oz (16g) |
| Product Width | 1.2" (30 mm) |
| Range | Full |
| Remote Receiver Ports | 1 |
| Resolution | 2048 |
| Serial Out | SRXL2 |
| Technology | AS3X+, SAFE |
| Telemetry | Yes |
| Telemetry Range | Full |
