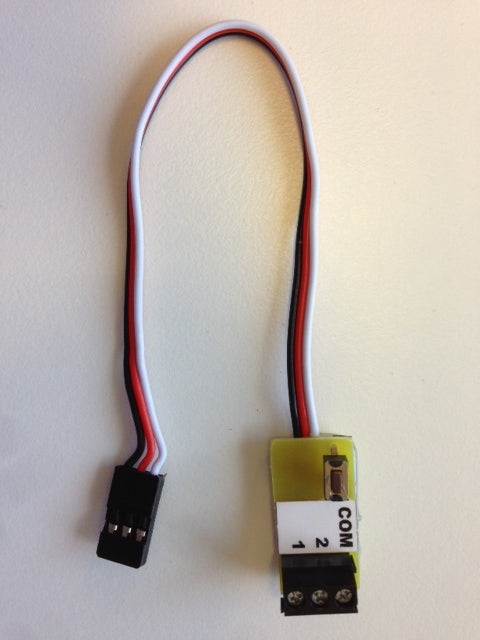

Elektronisk relæ, 2 kontakter

Specifikation:
2 kontaktsæt
3 Ampere maks.
12 Volt maks.

Features
Two outputs can be controlled by one stick.
Each output can be individually controlled.
Latching or non-latching operation can be selected.

Instructions
Plug the flying lead on the 2 way solid-state switch into the selected channel on your receiver. Switch on the transmitter and
then the receiver.
Make sure that the channel you are using has it's end point/travel adjustment set to 100% of movement. If you don't you may find
that one side will not switch on and off.
Move the control stick to one side of neutral to control one output. Move the control stick to the other side of neutral to control
the other output. The action can be latching or non-latching.
With non-latching action, the output remains on only while the stick is held on that side of neutral. With latching action, the
output remains on even when the stick is returned to neutral. A second stick movement is required to turn it off.

Set-up
Move the stick to maximum on one side of neutral and press the SET key. The item being controlled by that output will switch off
to confirm that the latching action has been set. The output controlled by that stick direction changes from latching to nonlatching
or from non-latching to latching each time the key is pressed.
Repeat the procedure with the stick on the other side of neutral to change the action of other output.
The unit remembers the settings and they will be retained until another output invert operation is performed.

SAFETY
Please ensure that the SET key cannot be pressed accidentally while the unit is in use.

PDF:

• 2-WAY-SOLID-STATE-SWITCH-Manual.pdf
