FrSKY R9S, 868MHz ACCESS EU-rx m. Gyro, 8ch

Overview:

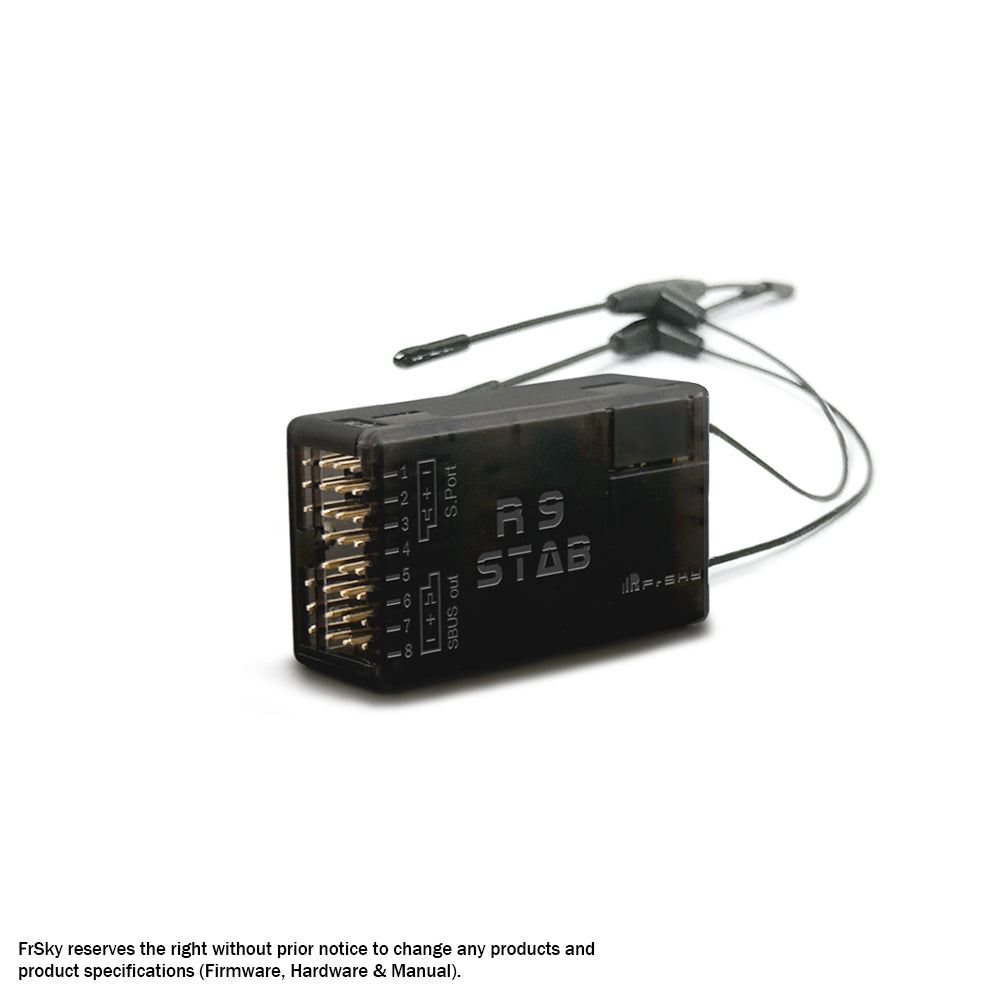

R9 STAB OTA is a 868MHz long-range and stabilization receiver with a built-in 3-axis gyroscope and 3-axis accelerometer.

MULTIPLE FLIGHT MODES

R9 STAB OTA has 8 PWM channels, on traditional fixed-wing models it will support stabilization, automatic level, hover and knife-edge flight modes. For delta wings and V-tail models, it supports stabilization and automatic level flight modes.

ACCESS PROTOCOL

R9 STAB OTA receiver implements the ACCESS protocol and brings the user improved performance and features. It supports wireless over-the-air firmware updates, making binding to receivers even easier as well as conveniently checking the current receiver firmware version.

CONFIGURATION PARAMETERS

Paired with a FrSky radio transmitter, the parameters can be adjusted conveniently through the LUA script. In addition, parameters may also be adjusted by FreeLink (PC) and FreeLink App (with AirLink S).

Features:

ACCESS protocol and supports OTA functions

868MHz long-range with low latency

Built-in 3-axis gyroscope and 3-axis accelerometer

Support S.Port

Supports quick configuration for setting multiple flight modes (quick mode)

Detachable Ipex1 connector antenna

Multiple configuration methods (LUA script and FreeLink)

Specifications:

Dimension: 45.7*26.3*16.2mm

Weight: 18.6g

Numbers of Channel: 8/16CH (CH16 outputs RSSI)

Operating Voltage: DC 3.5V~10V

Operating Current: 140mA@7.4V

Measuring range of gyroscope: ±2000dps

Measuring range of acceleration: ±4g

Compatibility: R9M Lite/R9M/R9M 2019 with ACCST firmware

R9M Lite/R9M Lite Pro/R9M 2019 with ACCESS firmware

PDF:

• R9-STAB-OTA-Manual.pdf
