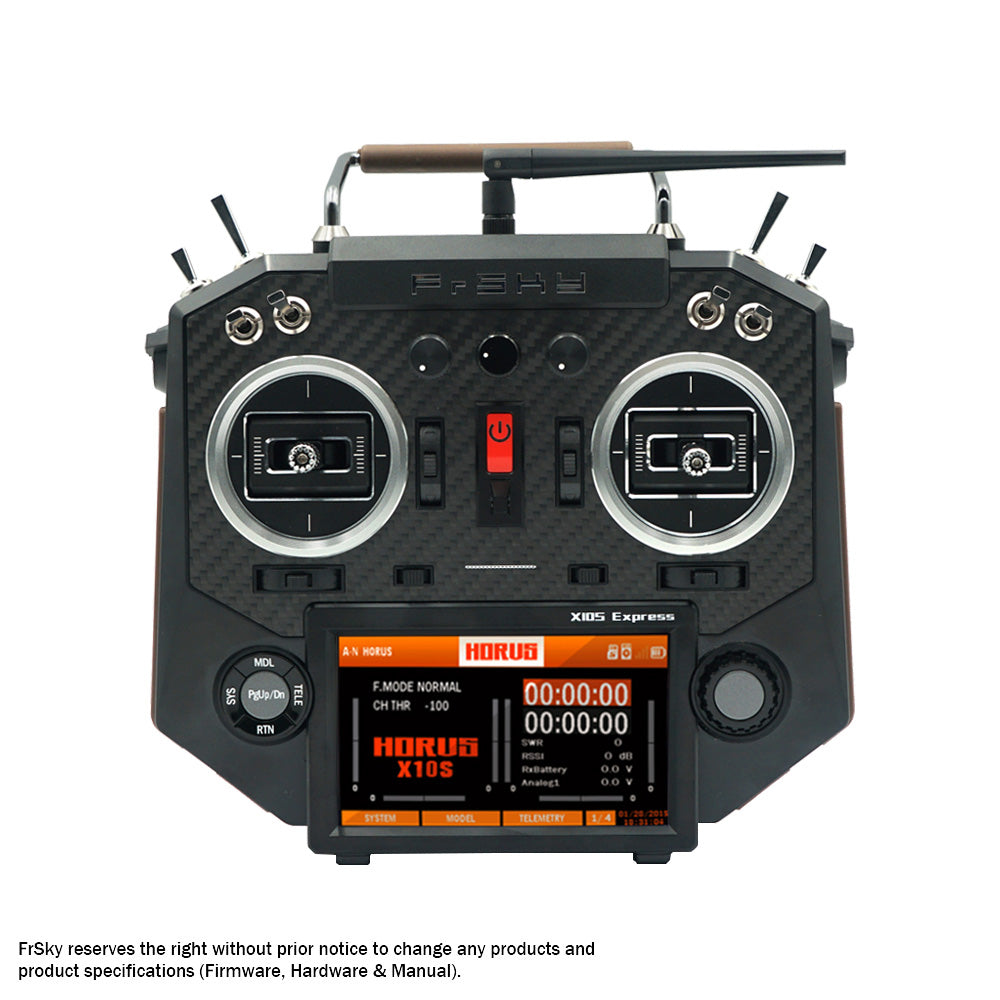

FrSky X10S ACCST/ACCESS-sender, Carbon. HUSK AT BESTILLE BATTERIER.

LEVERES MED EU-LBT FIRMWARE.

Bruger 2 stk. LiIon 18650 batterier.

Dimension: 213*225*112mm (L*W*H)

Weight: 950g (without battery)

Operating system: FrOS / OpenTX

Internal RF module: ISRM-S-X10

Number of Channels: 24 channels

Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)

Operating Temperature: -10℃- 60 ℃  (14℉ -140℉ )

Operating Current: 240mA@7.4V (typ)

Charging Current: ≤1A ±200mA

USB Adaptor Voltage: 5.0+0.2V

USB Adaptor Current: >2.0A

Backlit LCD resolution: 480*272

Compatibility: ACCST D16 and ACCESS receivers

With the demand for further extending the legacy of the Horus Series Transmitters, the Horus X10/S Express version was born. With many new updates like applying the ACCESS protocol and hardware tweaks.

Horus X10/S Express use the ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency equipped with a high-speed module digital interface. Along with the new spectrum analysis function and added FrOS/OpenTX firmware, it is now possible to check the airwaves for RF noise.

X10S Express support balancing charge for 2S Li-ion battery via a collateral USB cable. The accessible battery compartment design is another change worth mentioning, with two 18650 Li-ion batteries you can expect to be able to fly all day. The Express carries forward all of their predecessor’ features like the industrial LCD color screen, and the highly-accuracy MC12P hall sensor gimbals which offer the most precise control. Additionally, it features a remarkable PARA wireless trainer function which also makes them compatible with the FrSky Free Link App and AirLink S. All that makes the Express version an ideal transmitter for, gliders, helis, multirotor and every type of fixed-wing imaginable.

High-speed module digital interface with installed ACCESS protocol

Supports spectrum analyzer function

Supports wired training function

New PARA wireless training system

–  High-speed training system with a lower latency

–  Compatible with FrSky Free Link App and AirLink S via mobile devices

Dual internal antennas and a single detachable external antenna work in unison to create a robust link

Antenna detection and SWR warning

Industrial LCD: 480*272 readable outdoor color screen

Supports 2S Li-battery balancing charge with Mini USB interface

Easily accessible battery compartment (*Batteries not included)

MC12P all CNC digital higher accuracy ten bearings hall sensor gimbals and extendable stick ends

PDF:

• X10-X10S-Express--Manual.pdf
