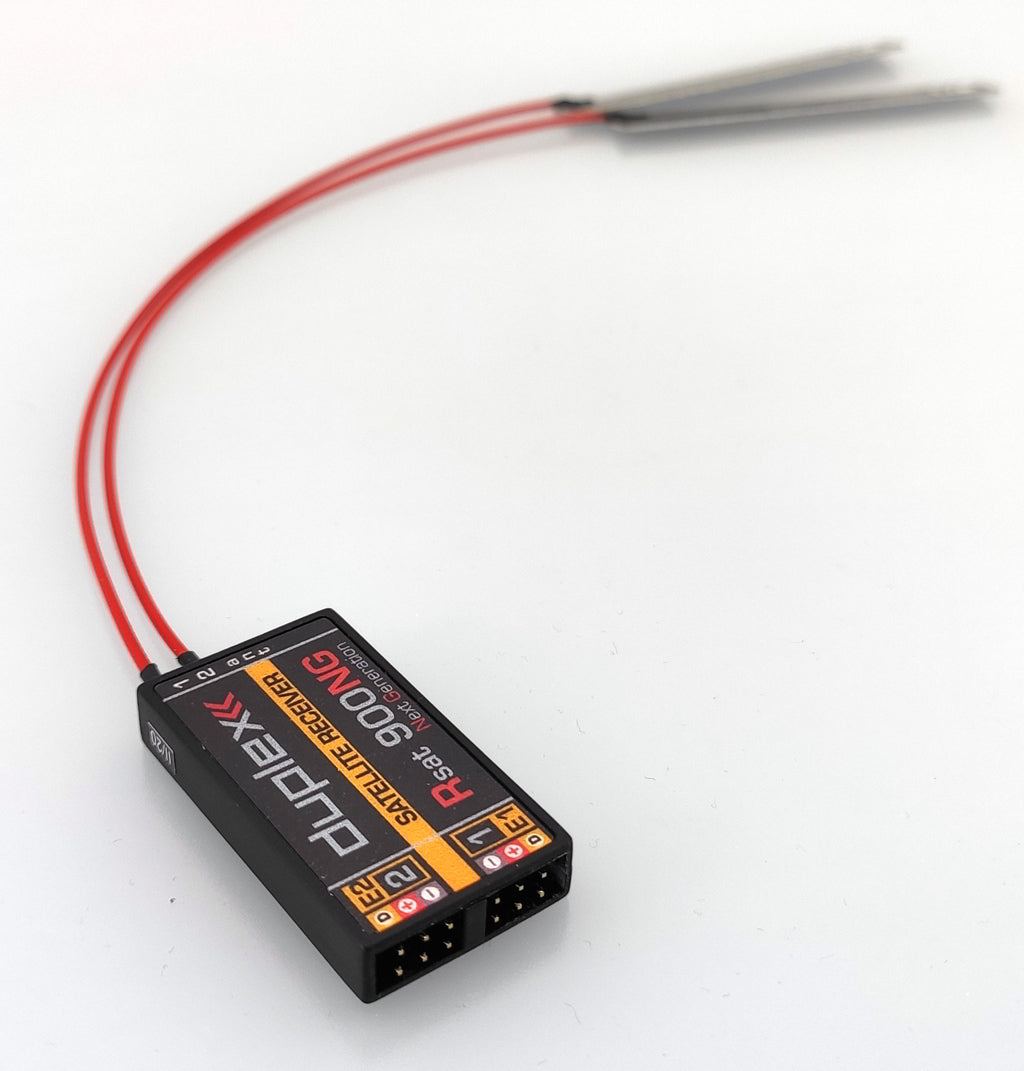

Jeti Duplex Rsat 900MHz NG modtager.

Description

The Duplex RSAT 900 NG (Next Generation) series receivers are designed for operation with JETI DC/DS transmitters fitted with a 900MHz NG module.

These 900MHz NG receivers have a better signal range and are less affected by interference. Duplex RSAT 900MHz NG receivers use the latest LoRa module technology. The 900MHz NG receivers are intended as a backup system if the 2.4GHz main system fails due to external interference. This significantly increases the safety of your RC model. Receivers RSAT 900 and RSAT 900 NG are not compatible!

Parameters

Telemetry         Yes

Operational temperature [°C] -10 to 85

Compatible protocols               DUPLEX 900 MHz EX, EX Bus

Supply Voltage [V]                     3.5 - 8.4

Average Current [mA]               75

Satellite receiver support         Yes

Output Power [dBm]                 15

Receiver Sensitivity [dBm]       -106

Assist stabilization                     No

Frequency         EU: 863 - 870MHz

Weight [g]        11

Dimensions [mm]                       40 x 22 x 7

Number of channels                  -

Antenna Length [mm]               2x 260

PDF:

• Duplex-REX-EN-DE_2020-10-web.pdf
