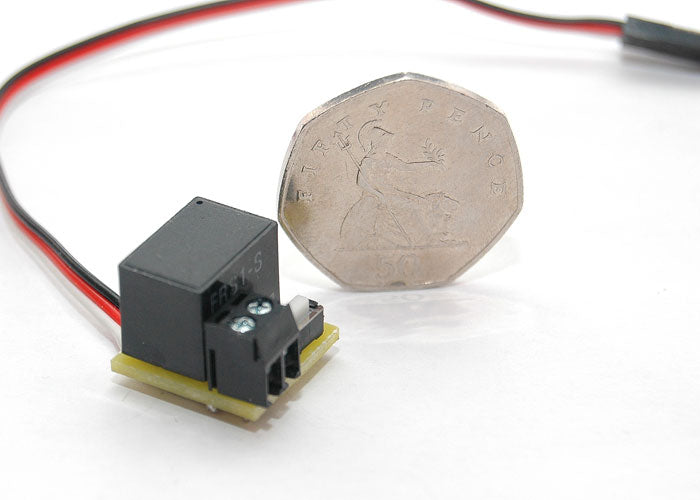

Relæ, 1 kontakt

Specifikation:
1 kontaktsæt
1 Ampere maks.
30 Volt maks.

PRODUCT DESCRIPTION
This Single relay Controller has been designed to allow modellers to switch one item on and off (max current 1 amp).

The unit also allows the user to select latching or non latching mode, so in latching once switched on it stays on until you trigger it to un-latch.

INSTRUCTIONS FOR USE
Plug the flying lead on the Single Relay Controller into the selected channel on your receiver. Switch on the transmitter and then the receiver.

With non-latching action, the relay remains on only while the stick is held on that side of neutral. With latching action, the relay remains on even when the stick is returned to neutral. A second stick movement is required to turn it off.

SET-UP
Move the control of the channel you are using to operate the single relay controller from one extreme to the other to confirm it's operation. Once you have establish which direction operates the relay, you can if required make it operate in latching mode by moving the channel to operate the relay and then press the set latch button

The unit remembers the settings and will be retained it until you carry the same operation to make it go back in to non latching mode.

SAFETY
Please ensure that the SET key cannot be pressed accidentally while the unit is in use.

PDF:

• Single-latching-relay-manual.pdf
